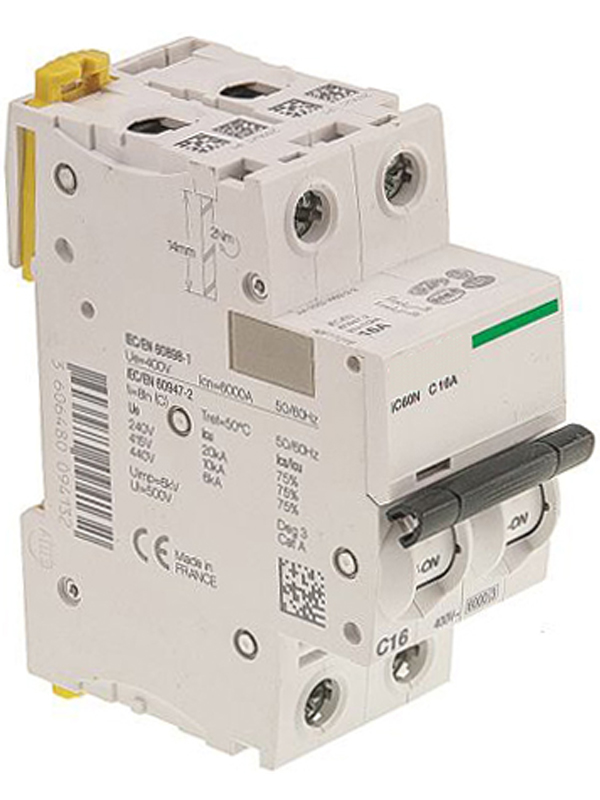

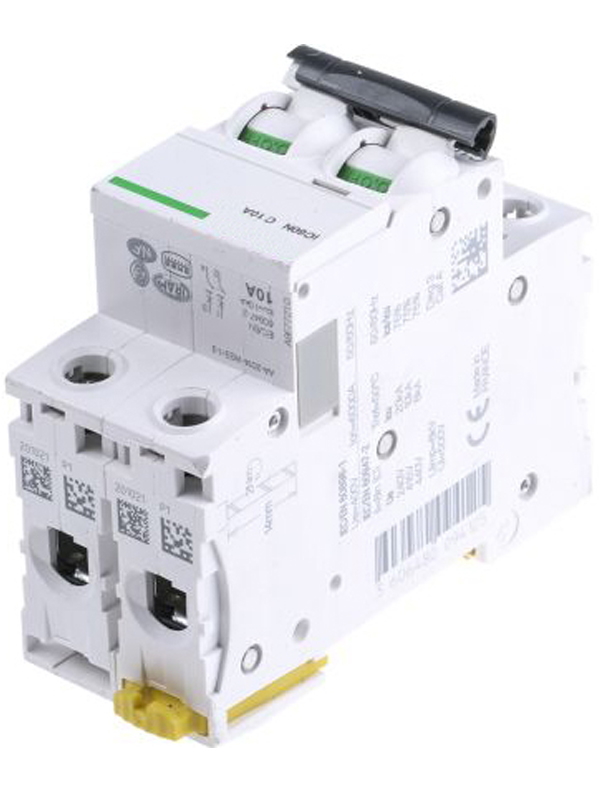

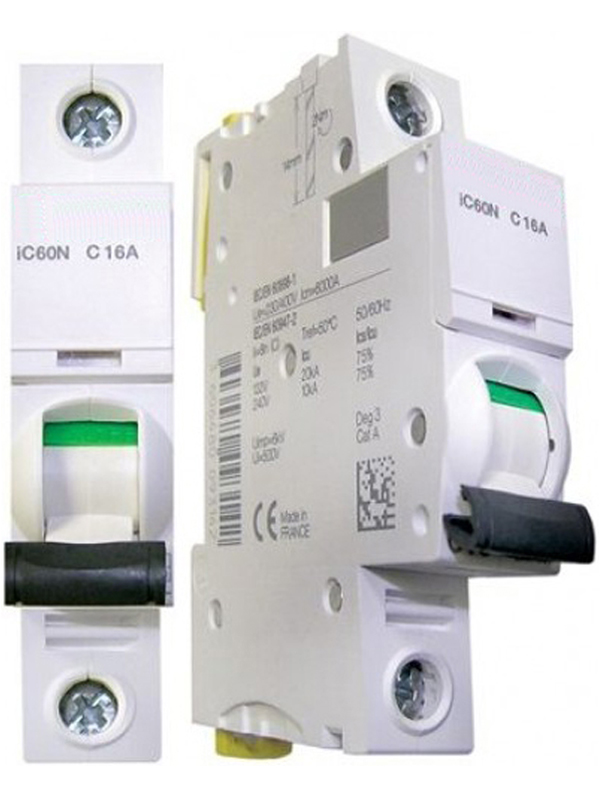

Technical Data of iC60N or iK60N series Miniature Circuit Breakers, Acti 9 Type
|
Alternating Current, AC, 50/60Hz |
||||||
|
Breaking capacity, Icu, according to IEC 60947-2 |
Service breaking |
|||||
|
|
Voltage, Ue, V |
Capacity, Ics |
||||
|
Ph/N, 1P |
12 to 60 |
100 to 133 |
200 to 240 |
- |
|
|
|
Ph/N, 2P, 3P, 4P |
12 to 133 |
220 to 240 |
380 to 415 |
440 |
||
|
Rating, In |
6-40A |
24kA |
18kA |
9kA |
6kA |
50% of Icu |
|
50/63A |
24kA |
- |
9kA |
6kA |
50% of Icu |
|
Category numbers of iC60N or iK60N series Miniature Circuit Breakers, Acti 9 Type
|
Poles |
1P |
2P |
3P |
4P |
||||
|
Ratings, In |
B curve |
C curve |
B curve |
C curve |
B curve |
C curve |
B curve |
C curve |
|
6A |
A9F53106 |
A9F54106 |
A9F53206 |
A9F54206 |
A9F53306 |
A9F54306 |
A9F53406 |
A9F54406 |
|
10A |
A9F53110 |
A9F54110 |
A9F53210 |
A9F54210 |
A9F53310 |
A9F54310 |
A9F53410 |
A9F54410 |
|
16A |
A9F53116 |
A9F54116 |
A9F53216 |
A9F54216 |
A9F53316 |
A9F54316 |
A9F53416 |
A9F54416 |
|
20A |
A9F53120 |
A9F54120 |
A9F53220 |
A9F54220 |
A9F53320 |
A9F54320 |
A9F53420 |
A9F54420 |
|
25A |
A9F53125 |
A9F54125 |
A9F53225 |
A9F54225 |
A9F53325 |
A9F54325 |
A9F53425 |
A9F54425 |
|
32A |
A9F53132 |
A9F54132 |
A9F53232 |
A9F54232 |
A9F53332 |
A9F54332 |
A9F53432 |
A9F54432 |
|
40A |
A9F53140 |
A9F54140 |
A9F53240 |
A9F54240 |
A9F53340 |
A9F54340 |
A9F53440 |
A9F54440 |
|
50A |
A9F53150 |
A9F54150 |
A9F53250 |
A9F54250 |
A9F53350 |
A9F54350 |
A9F53450 |
A9F54450 |
|
63A |
A9F53163 |
A9F54163 |
A9F53263 |
A9F54263 |
A9F53363 |
A9F54363 |
A9F53463 |
A9F54463 |
