Selection table of DB90 series RCBOs
|
Type |
Poles |
Voltage |
Ratings, In |
Sensitivity, I△n |
Catalogue Code |
|
Instantaneous residual current, DB90 |
2P |
250VAC |
15/30/45A |
500mA |
13100 |
|
30/45/60A |
500mA |
13106 |
|||
|
60/75/90A |
500mA |
13105 |
|||
|
4P |
440VAC |
10/15/20/25/30A |
500mA |
13102 |
|
|
30/40/50/60A |
500mA |
13103 |
|||
|

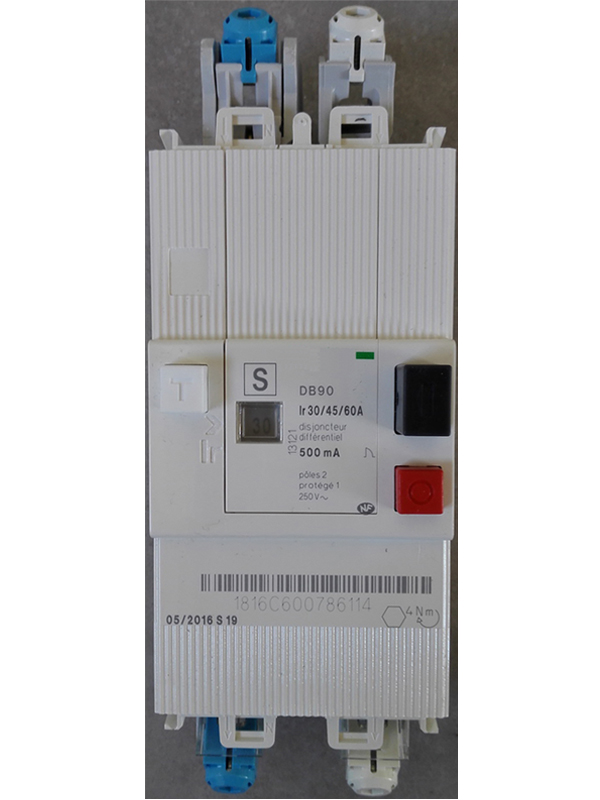

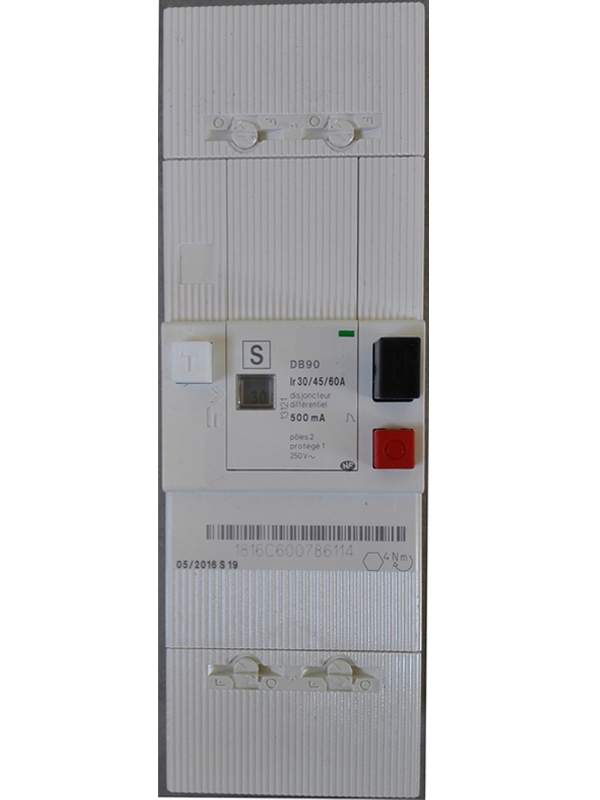

Selective residual current, DB90 |
2P |
250VAC |
15/30/45A |
500 S |
13120 |
|
30/45/60A |
500 S |
13121 |
|||
|
60/75/90A |
500 S |
13122 |
|||
|
4P |
440VAC |
10/15/20/25/30A |
500 S |
13123 |
|
|
30/40/50/60A |
500 S |
13124 |
|||
|
Non residual current, DB90 |
2P |
250VAC |
15/30/45A |
- |
13110 |
|
30/45/60A |
- |
13116 |
|||
|
60/75/90A |
- |
13115 |
|||
|
4P |
440VAC |
10/15/20/25/30A |
- |
13112 |
|
|
30/40/50/60A |
- |
13104 |
