Selection table of EDF series RCBOs, Baco type
|
Type |
Poles |
Voltage |
Ratings, In |
Sensitivity, I△n |
Catalogue Code |
|
Instantaneous residual current, EDF |
2P |
250VAC |
15/30/45A |
500mA |
210 01 |
|
30/45/60A |
500mA |
210 04 |
|||
|
60/75/90A |
500mA |
210 07 |
|||
|
4P |
440VAC |
10/15/20/25/30A |
500mA |
210 11 |
|
|
30/40/50/60A |
500mA |
210 14 |
|||
|

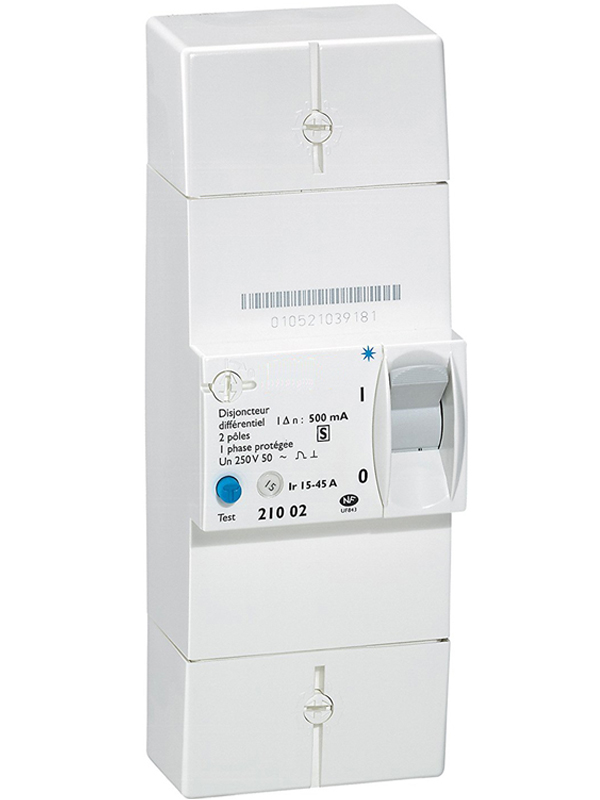

Selective residual current, EDF |
2P |
250VAC |
15/30/45A |
500 S |
210 02 |
|
30/45/60A |
500 S |
210 05 |
|||
|
60/75/90A |
500 S |
210 08 |
|||
|
4P |
440VAC |
10/15/20/25/30A |
500 S |
210 12 |
|
|
30/40/50/60A |
500 S |
210 15 |
|||
|

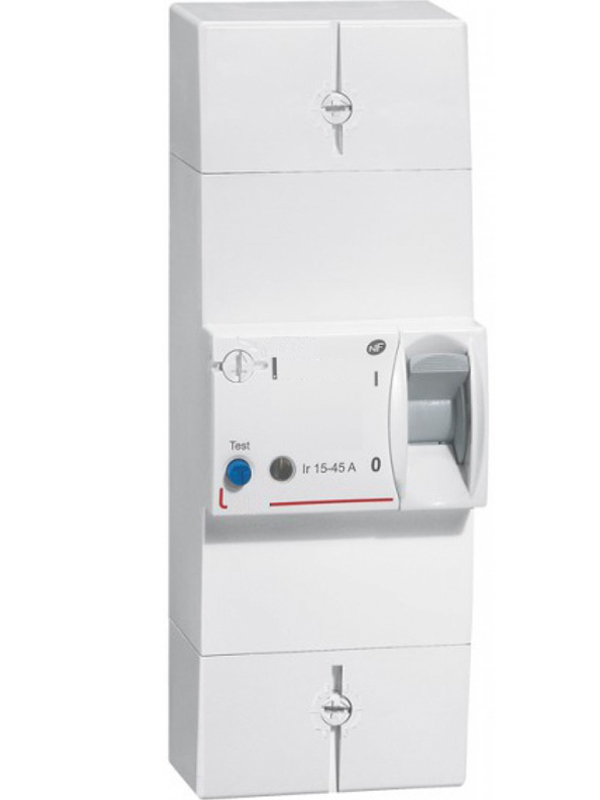

Non residual current, EDF |
2P |
250VAC |
15/30/45A |
- |
210 03 |
|
30/45/60A |
- |
210 06 |
|||
|
60/75/90A |
- |
210 09 |
|||
|
4P |
440VAC |
10/15/20/25/30A |
- |
210 13 |
|
|
30/40/50/60A |
- |
210 16 |
