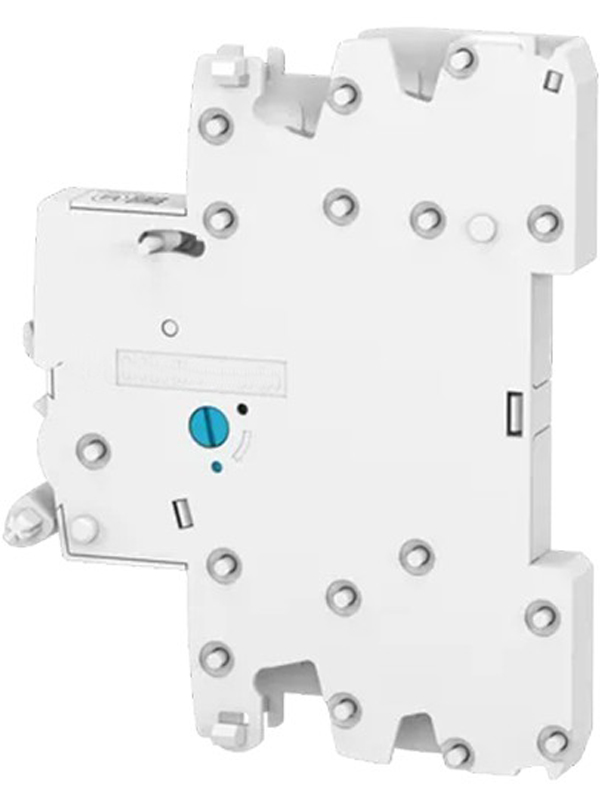

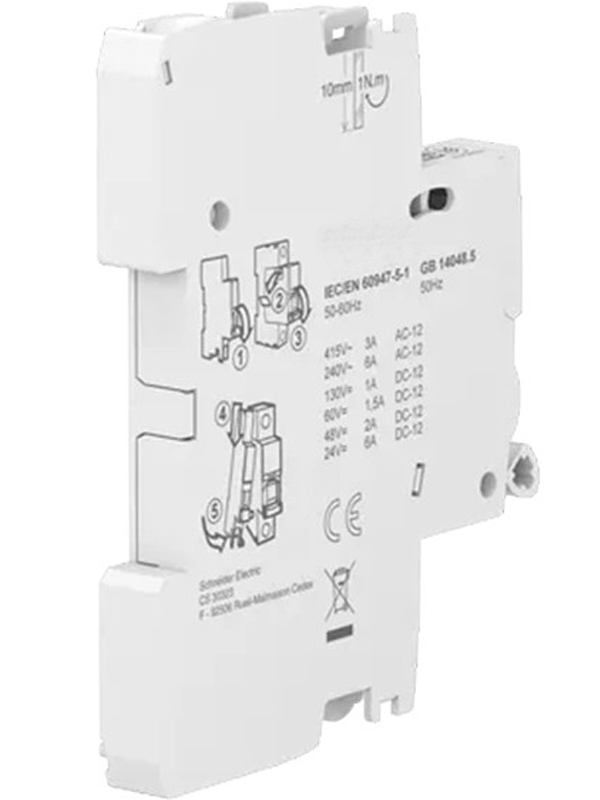

Technical Specification of Electrical Auxiliaries with Acti 9 Series:
|
Auxiliaries |

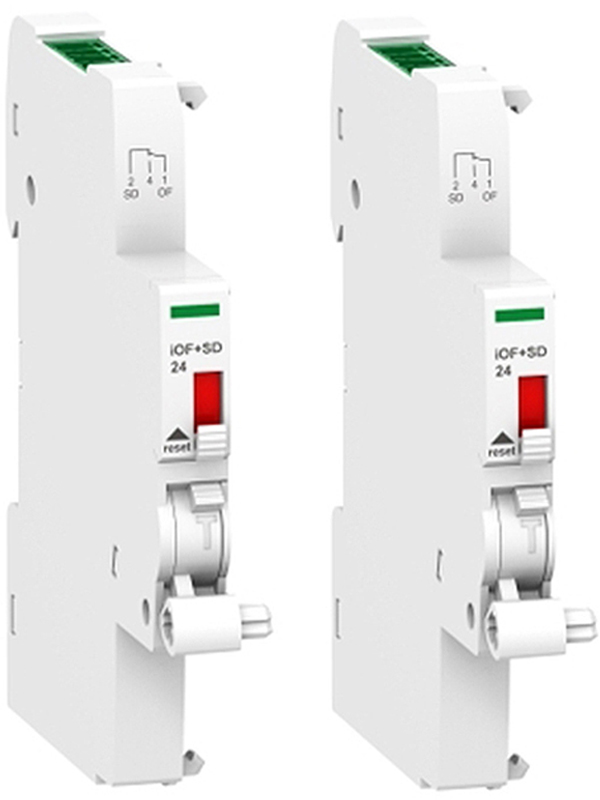

iOF | iSD | iOF/SD+OF | iOF+SD24 | |
|
Rated Voltage, Ue |
VAC |
240…415 |
240…415 |
240…415 | - |
| VDC | 24…130 |
24…130 |
24…130 | 24 | |
| Operating Frequency | Hz | 50/60 | 50/60 | 50/60 | - |
| Red Mechanical Indicator | - | On front face | On front face | On front face | |
| Test Function | On toggle | On toggle | On toggle | On toggle | |
| Width in 9mm modules | 1 | 1 | 1 | 1 | |
| Operating Current | 48VDC | 2A | |||
| 60VDC | 1.5A | ||||
| 130VDC | 1A | ||||
| 240VAC | 6A | ||||
| 415VAC | 3A | ||||
| Number of contacts | 1NO/NC | 1NO/NC | 1NO/NC+1NO/NC | 1NO/NC | |
| Catalogue Numbers | A9A26924 | A9A26927 | A9A26929 | A9A26897 | |
|
iC60, iID, iDPN Vigi, RCA and ARA |
■ | ■ | ■ | ■ | |
