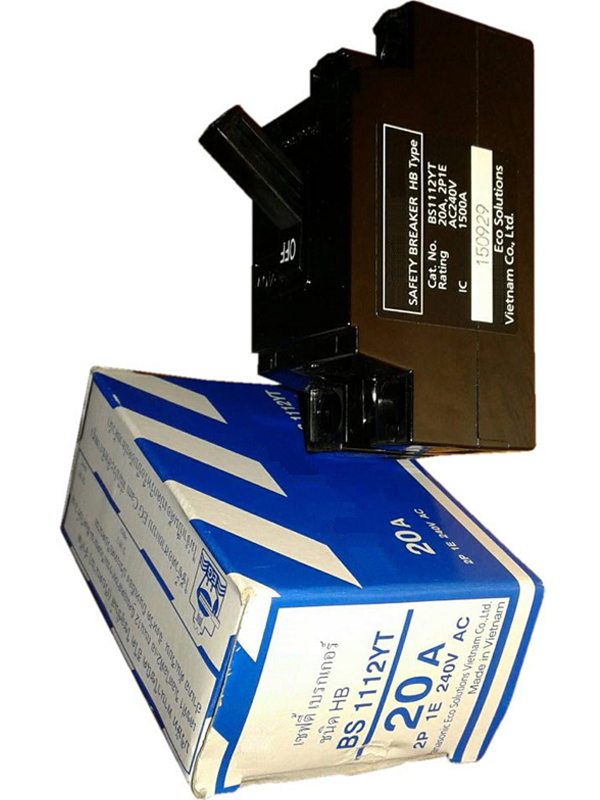

Selection table and technical data of Safety Breaker, HB and S-HB type
|
Type: BS |
Safety beaker, HB type |
Safety breaker, S-HB type |
|||||||||
|
1106TV |
1110TV |
1111TV |
1112TV |
1113TV |
2022TV |
2023TV |
220TV |
230TV |
2202TV |
2302TV |
|
|
Poles |
2P1E |
2P2E |
2P1E |
2P2E |
|||||||
|
Ratings |
6A |
10A |
15A |
20A |
30A |
20A |
30A |
20A |
30A |
20A |
30A |
|
Ue |
AC240V, 1.0kA(6A), 1.5kA(10, 15, 20, 30A) |
AC120/240V, 1.5kA |
AC240/415V, 2.5kA |
||||||||
|
Tripping |
Terminal method operation |
||||||||||
|
Arcing |
Natural quenching |
||||||||||
|
Timing |
10ms(100%) |
5ms(50%) |
|||||||||
|
Passage |
23x103A2 Seconds, 100% |
5.7x103A2 Seconds, 25% |
|||||||||
|
Weight |
0.07kg |
0.08kg |
0.09kg |
0.11kg |
|||||||
|
Applied |
Air conditioners, water pumps, water heaters etc |
||||||||||
Note:
1. Use 20A for normal current branch circuits, and 30A for high capacity dedicated circuits;
2. Use 15A or less for machine protection, after consideration of its characteristic: inrush currents and usual currents;
3. The data in capacity mentioned above are just for your reference, which are Panasonic experiment ones;
Selection table and technical data of Earth Leakage Breaker, BJS type
Type: BJS
Earth leakage beaker BJS type
30208A2
30308A2
15125
15225
15325
20215
20225
20325
30125
30225
30325
Poles
2P0E
2P2E
Ratings
30A
15A
20A
30A
Ue
AC120-240V
AC100-240V
Operating
15mA
30mA
10mA
15mA
30mA
10mA
15mA
30mA
10mA
15mA
30mA
Non
7.5mA
15mA
6mA
7.5mA
15mA
6mA
7.5mA
15mA
6mA
7.5mA
15mA
Icu
1.5kA
Phase
1Ø2W
1Ø2W, 1Ø3W
Timing
Within 0.1 Seconds
Handle
Standard
-
Tripping
Non
Thermal operation
Weight
0.1kg
0.09kg
Applied
Water heaters, refrigerators, fleezers
Note:
1. Rated short-time current means that although short circuit protection is not possible, the internal circuitry and conductors can withstand 1.5kA for 0.02 seconds;
2. Ambient temperature range for usage: -10℃ to +50℃;
3. Disconnect electrical wiring before measuring insulation resistance between wires
