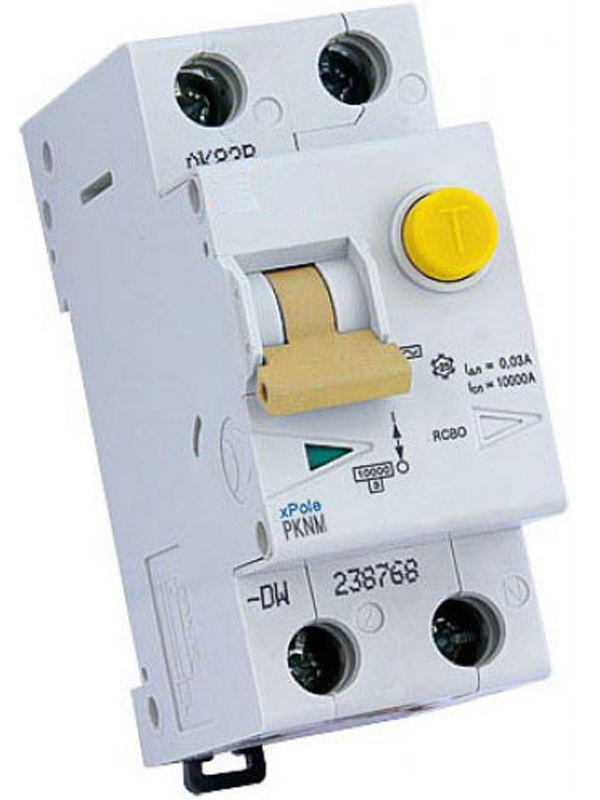

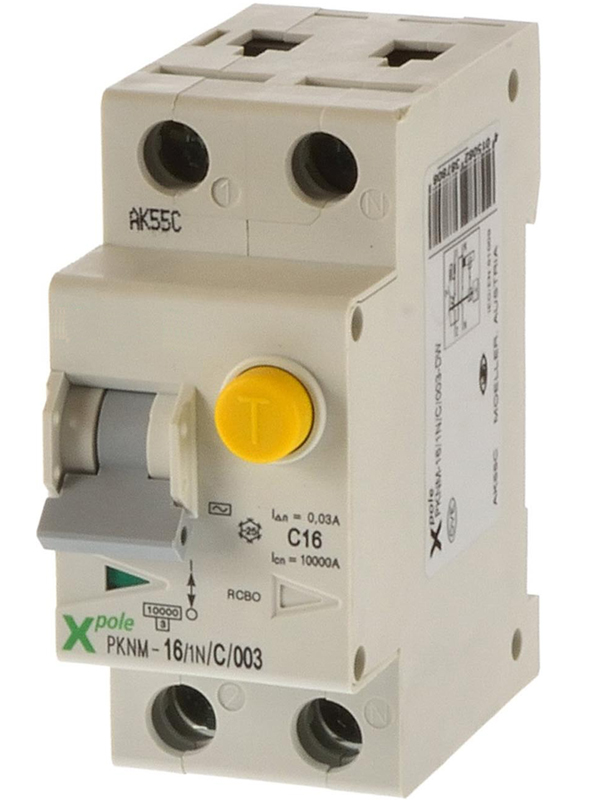

Technical data of PKN series MCB/RCDs
|
Mechanical |
Electrical |
|||
|
Degree of protection switch: |
IP20 |
Rated Voltage, Ue: |
230VAC/50Hz |
|
|
Degree of pollution: |
IP40 |
Operational Voltage Range: |
196-253V |
|
|
Frame size: |
45mm |
Rated Impulse Voltage, Uimp: |
4kV |
|
|
Device height: |
80mm |
Rated Tripping Current, I△n: |
10, 30, 100, 300mA |
|
|
Device width: |
35mm, 2MU |
Rated Current, In: |
6-40A |
|
|
Upper & lower terminals: |
Open/lift |
Rated Breaking Capacity: |
10kA |
|
|
Terminal capacity: |
1-25mm2 |
Characteristic: |
B, C |
|
|
Bus bar thickness: |
0.8-20mm |
Sensitivity: |
AC and Pulsating DC |
|
|
Tripping temperature: |
-25 to +40℃ |
Sensitivity Class: |
3 |
|
|
Storage temperature: |
-35 to +60℃ |
Life |
Mechanical |
≧20,000 Cycles |
|
Terminal protection: |
Finger |
Electrical |
≧4,000 Cycles |
|
|
Climatic conditions |
IEC/EN 61009 |
Maximum back-up fuse: |
100A, gL≧10kA |
|
Selection table for PKNM series MCB/RCDs
|
Item |
In/I△n |
Designation |
Code |
Designation |
Code |
Units/Pack |
|
Combined MCB/RCD Devices PKNM, 1+N-pole |
6/0.01 |
PKNM-6/1N/B/001 |
236006 |
PKNM-6/1N/C/001 |
236016 |
1/60 |
|
6/0.03 |
PKNM-6/1N/B/003 |
236007 |
PKNM-6/1N/C/003 |
236017 |
||
|
6/0.10 |
PKNM-6/1N/B/01 |
236008 |
PKNM-6/1N/C/01 |
236018 |
||
|
6/0.30 |
PKNM-6/1N/B/03 |
236009 |
PKNM-6/1N/C/03 |
236019 |
||
|
10/0.01 |
PKNM-10/1N/B/001 |
236066 |
PKNM-10/1N/C/001 |
236076 |
||
|
10/0.03 |
PKNM-10/1N/B/003 |
236067 |
PKNM-10/1N/C/003 |
236077 |
||
|
10/0.10 |
PKNM-10/1N/B/01 |
236068 |
PKNM-10/1N/C/01 |
236078 |
||
|
10/0.30 |
PKNM-10/1N/B/03 |
236069 |
PKNM-10/1N/C/03 |
236079 |
||
|
16/0.01 |
PKNM-16/1N/B/001 |
236199 |
PKNM-16/1N/C/001 |
236211 |
||
|
16/0.03 |
PKNM-16/1N/B/003 |
236200 |
PKNM-16/1N/C/003 |
236212 |
||
|
16/0.10 |
PKNM-16/1N/B/01 |
236201 |
PKNM-16/1N/C/01 |
236213 |
||
|
16/0.30 |
PKNM-16/1N/B/03 |
236202 |
PKNM-16/1N/C/03 |
236214 |
||
|
20/0.03 |
PKNM-20/1N/B/003 |
236235 |
PKNM-20/1N/C/003 |
236245 |
||
|
20/0.10 |
PKNM-20/1N/B/01 |
236236 |
PKNM-20/1N/C/01 |
236246 |
||
|
20/0.30 |
PKNM-20/1N/B/03 |
236237 |
PKNM-20/1N/C/03 |
236247 |
||
|
25/0.03 |
PKNM-25/1N/B/003 |
236265 |
PKNM-25/1N/C/003 |
236275 |
||
|
25/0.10 |
PKNM-25/1N/B/01 |
236266 |
PKNM-25/1N/C/01 |
236276 |
||
|
25/0.30 |
PKNM-25/1N/B/03 |
236267 |
PKNM-25/1N/C/03 |
236277 |
||
|
32/0.03 |
PKNM-32/1N/B/003 |
236295 |
PKNM-32/1N/C/003 |
236305 |
||
|
32/0.10 |
PKNM-32/1N/B/01 |
236296 |
PKNM-32/1N/C/01 |
236306 |
||
|
32/0.30 |
PKNM-32/1N/B/03 |
236297 |
PKNM-32/1N/C/03 |
236307 |
||
|
40/0.03 |
PKNM-40/1N/B/003 |
236324 |
PKNM-40/1N/C/003 |
236334 |
||
|
40/0.10 |
PKNM-40/1N/B/01 |
236325 |
PKNM-40/1N/C/01 |
236335 |
||
|
40/0.30 |
PKNM-40/1N/B/03 |
236326 |
PKNM-40/1N/C/03 |
236336 |
