Technical data of ZP-IHK/NHK series Auxiliary Switches
|
Auxiliary Switches, Tripping Signal Switches |
ZP-IHK |
ZP-WHK |

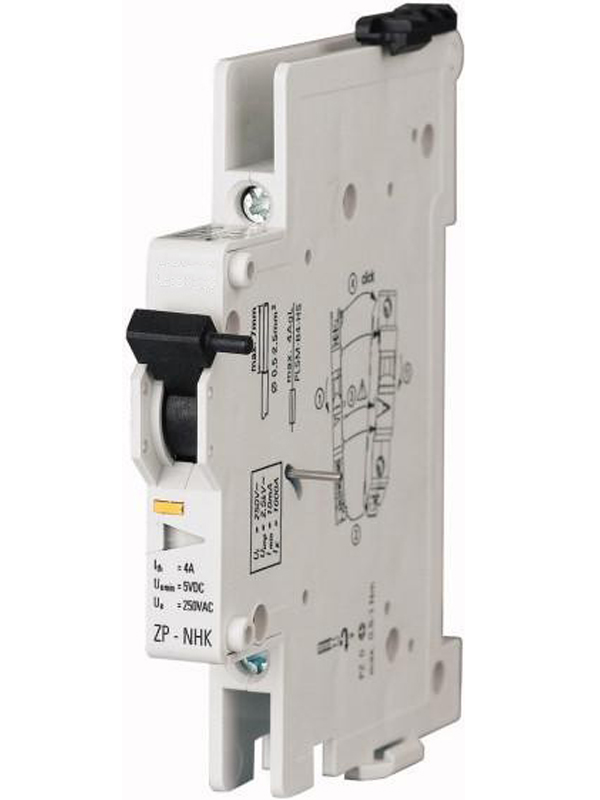

ZP-NHK |
|
|
Contact Function |
1NO+1NC |
1NC |
2NO |
|
|
Rated Voltage |
250VAC |
|||
|
Rated peak withstand voltage, Uimp |
2.5kV |
|||
|
Frequency |
50/60Hz |
|||
|
Rated Current, In |
6A |
6A |
4A |
|
|
Terminal Capacity |
0.5-2.5mm2 |
|||
|
Can be mounted from the left onto |
MCB |
PL, PLS, PLZ |
||
|
RCD/MCB |
PKNM |
|||
|
Rated current, In |
6A |
6A |
4A |
|
|
Rated thermal current, Ith |
6A |
6A |
4A |
|
|
Rated operational current in category AC13, Ie |
3A/250VAC |
|||
|
Rated operational current in category AC15, Ie |
2A/250VAC |
|||
|
Rated operational current in category DC12, Ie |
0.5A/110VDC |
|||
|
Frame size |
45mm |
|||
|
Device height |
80mm |
|||
|
Device width |
8.8mm/0.5MU |
|||
