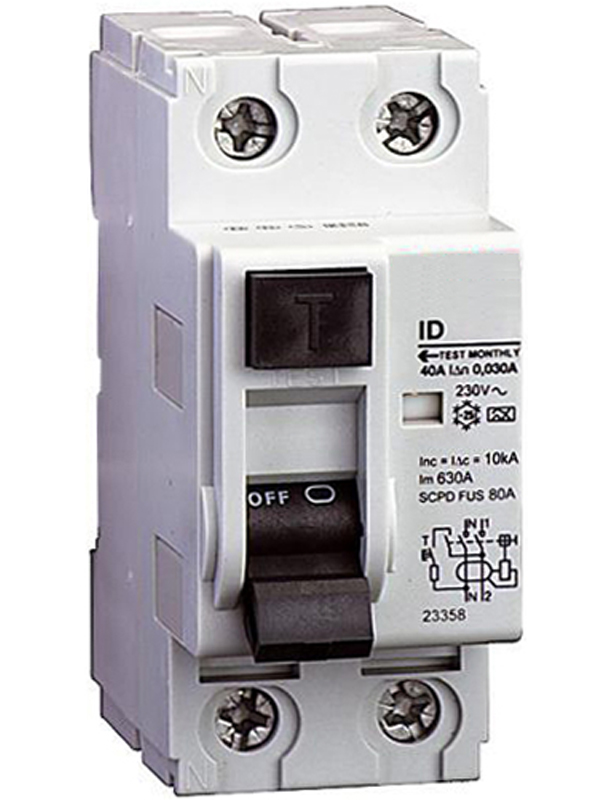

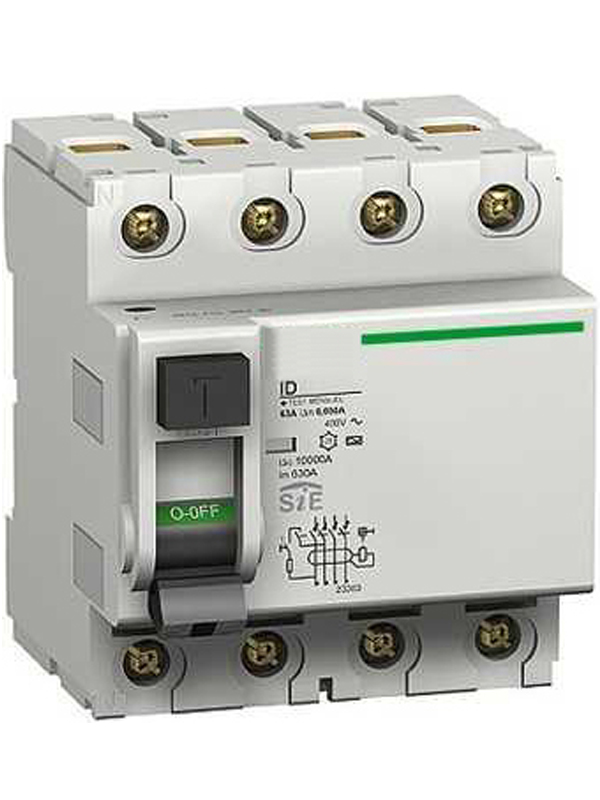

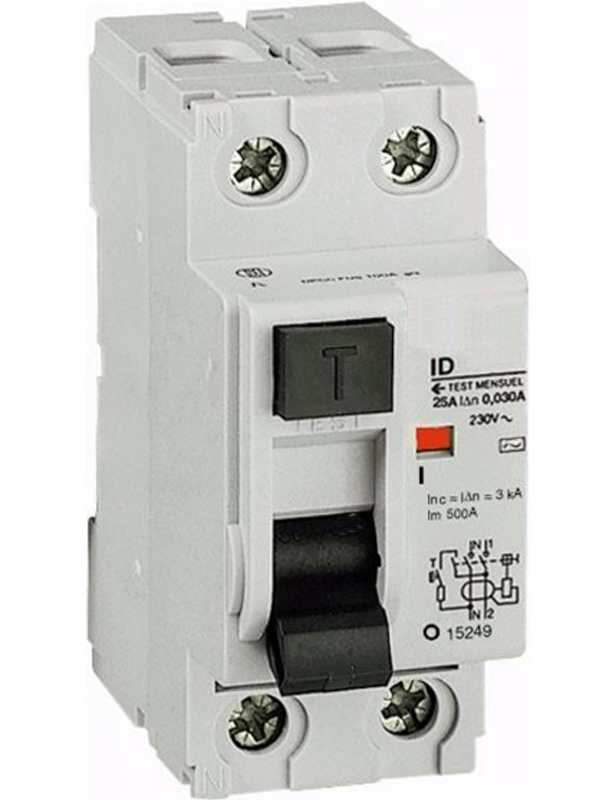

ID Residual Current Circuit Breakers, Multi 9

You are here: Home » Products » Residual Current Circuit Breakers

ID series residual current circuit breakers are suitable for use to protect against nuisance tripping due to transient voltages with the following characteristics:
■ Impulse withstand level 8/20 us;
■ Short circuit current withstand(Idc=Inc): 10kA with 100A fuse upstream;
■ Number of operations (O-C): 20,000
■ Trip units with fixed sensitivities for all ratings;
■ Remote tripping: using auxiliaries;
Online Service
Whatsapp Data Sheet
【Prev Product】 【Next Product】

Selection table of ID series Residual Current Circuit Breakers, RCCBs

2-pole, 230-240VAC, AC

Sensitivity, I△n

30mA

100mA

300mA

500mA

Rated Current, In

25A

23009

-

23011

23012

40A

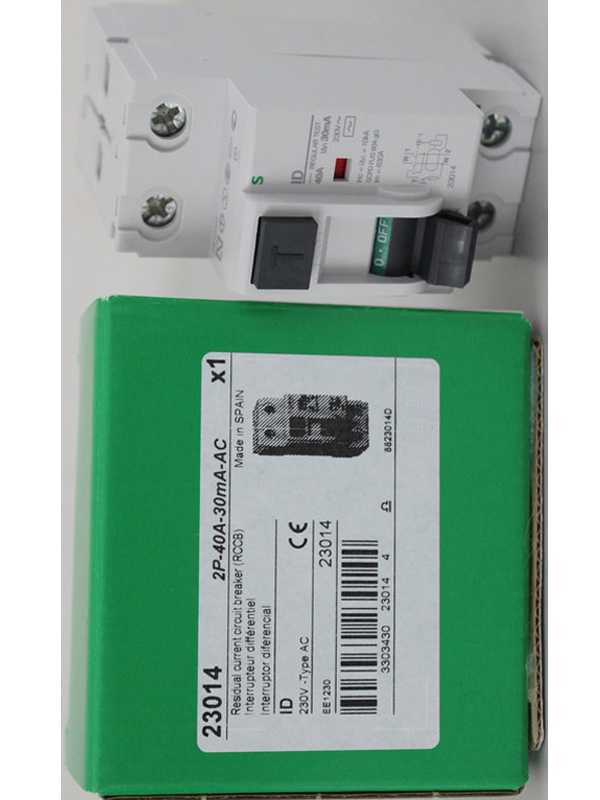

23014

23015

23016

23017

63A

23018

-

23021

23022

80A

23020

-

23030

23026

100A

-

-

23034

-

4-pole, 400-415VAC, AC

Sensitivity, I△n

30mA

100mA

300mA

500mA

Rated Current, In

25A

23038

-

23040

23041

40A

23042

23536

23045

23046

63A

23047

15177

23049

23051

80A

23061

-

23054

23055

100A

-

-

23056

-

2-pole, 230-240VAC, A

Sensitivity, I△n

30mA

100mA

300mA

500mA

Rated Current, In

25A

23354

-

23356

-

40A

23358

-

23360

-

63A

23362

-

23364

-

80A

-

-

-

-

100A

-

-

-

-

4-pole, 400-415VAC, A

Sensitivity, I△n

30mA

100mA

300mA

500mA

Rated Current, In

25A

23378

-

23380

23381

40A

23382

23304

23384

23385

63A

23386

-

23388

23389

80A

-

-

23326

-

100A

-

-

-

-

2-pole, 230-240VAC, SI

Sensitivity, I△n

30mA

100mA

300mA

500mA

Rated Current, In

25A

23523

-

-

-

40A

23524

-

-

-

63A

23525

-

-

-

80A

-

-

-

-

100A

-

-

-

-

4-pole, 400-415VAC, SI

Sensitivity, I△n

30mA

100mA

300mA

500mA

Rated Current, In

25A

23526

-

-

-

40A

23529

-

-

-

63A

23530

-

-

-

80A

23390

-

-

-

100A

-

-

-

-
