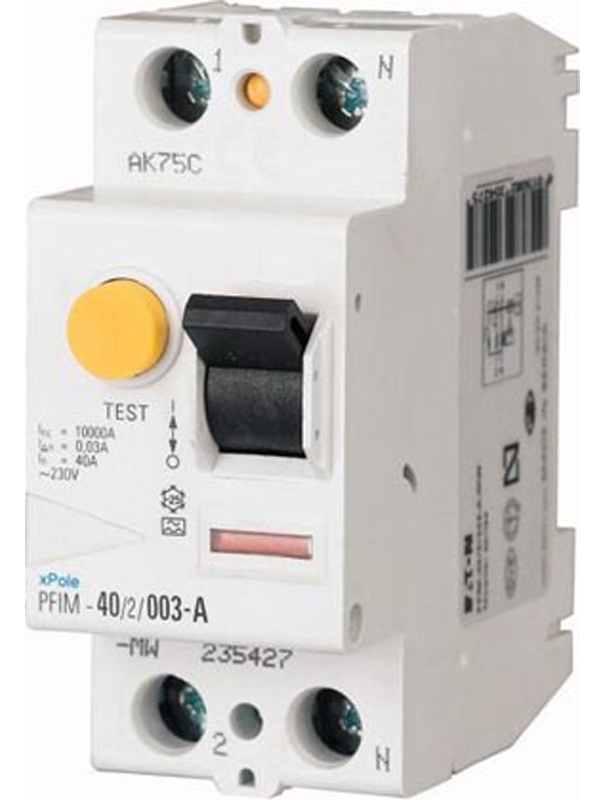

Technical data of PFIM series Residual Current Circuit Breakers, RCCBs
|
Electrical |
Mechanical |
|||
|
Design according to |
IEC/EN 61008 |
Frame size |
45mm |
|
|
Current test marks as printed onto the device |
Device height |
80mm |
||
|
Tripping |
|
Instantaneous |
Device width |
35mm/2MU,70mm/4MU |
|
Type G, R |
10ms delay |
Mounting |
Quick fastening with 2 lock-in positions on DIN rail |
|
|
Type S |
40ms delay |
|||
|
Type U(only 30mA) |
10ms delay |
Degree |
IP40 |
|
|
Type U(without 30mA) |
40ms delay |
Terminals |
Open mouthed/lift terminals |
|
|
Rated voltage, Un |
230/400V, 50Hz |
|
1.5-35mm2, single wire |
|
|
Rated tripping current, I△n |
10, 30, 100, 300, 500mA |
|
2x16mm2, multi wires |
|
|
Selectivity |
AC and pulsing DC |
Busbar thickness |
0.8-2mm |
|
|
Rated insulation voltage, Ui |
440V |
Temperature |
-25℃ to +40℃ |
|
|
Rated impulse voltage, Uimp |
4kV |
|
|
|
|
Rated short circuit strength, Inc |
10kA |
|
|
|
|
Voltage range of test button, 2-pole |
184-250V |
|
|
|
|
Voltage range of test button, 4-pole |
184-440V |
|
|
|
|
Endurance |
Mechanical |
≧20,000 cycles |
|
|
|
Electrical |
≧4,000 cycles |
|
|
|
Selection table of PFIM series Residual Current Devices, AC Type
|
Poles |
In/I△n |
Type |
Code |
Poles |
In/I△n |
Type |
Code |
|
2-pole |
16/0.01 |
PFIM-16/2/001 |
235389 |
4-pole |
16/0.01 |
- |
- |
|
25/0.03 |
PFIM-25/2/003 |
235390 |
25/0.03 |
PFIM-25/4/003 |
235406 |
||
|
25/0.10 |
PFIM-25/2/01 |
235391 |
25/0.10 |
PFIM-25/4/01 |
235407 |
||
|
25/0.30 |
PFIM-25/2/03 |
235392 |
25/0.30 |
PFIM-25/4/03 |
235408 |
||
|
25/0.05 |
PFIM-25/2/05 |
235393 |
25/0.50 |
PFIM-25/4/05 |
235409 |
||
|
40/0.03 |
PFIM-40/2/003 |
235394 |
40/0.03 |
PFIM-40/4/003 |
235410 |
||
|
40/0.10 |
PFIM-40/2/01 |
235395 |
40/0.10 |
PFIM-40/4/01 |
235411 |
||
|
40/0.30 |
PFIM-40/2/03 |
235396 |
40/0.30 |
PFIM-40/4/03 |
235412 |
||
|
40/0.50 |
PFIM-40/2/05 |
235397 |
40/0.50 |
PFIM-40/4/05 |
235413 |
||
|
63/0.03 |
PFIM-63/2/003 |
235398 |
63/0.03 |
PFIM-63/4/003 |
235414 |
||
|
63/0.10 |
PFIM-63/2/01 |
235399 |
63/0.10 |
PFIM-63/4/01 |
235415 |
||
|
63/0.30 |
PFIM-63/2/03 |
235400 |
63/0.30 |
PFIM-63/4/03 |
235416 |
||
|
63/0.50 |
PFIM-63/2/05 |
235401 |
63/0.50 |
PFIM-63/4/05 |
235417 |
||
|
80/0.03 |
PFIM-80/2/003 |
235402 |
80/0.03 |
PFIM-80/4/003 |
235418 |
||
|
80/0.10 |
PFIM-80/2/01 |
235403 |
80/0.10 |
PFIM-80/4/01 |
235419 |
||
|
80/0.30 |
PFIM-80/2/03 |
235404 |
80/0.30 |
PFIM-80/4/03 |
235420 |
||
|
80/0.50 |
PFIM-80/2/05 |
235405 |
80/0.50 |
PFIM-80/4/05 |
235421 |
||
|
100/0.03 |
PFIM-100/2/003 |
102821 |
100/0.03 |
PFIM-100/4/003 |
102823 |
||
|
100/0.10 |
PFIM-100/2/01 |
102874 |
100/0.10 |
PFIM-100/4/01 |
102824 |
||
|
100/0.30 |
PFIM-100/2/03 |
102822 |
100/0.30 |
PFIM-100/4/03 |
102825 |
||
|
100/0.50 |
- |
- |
100/0.50 |
PFIM-100/4/05 |
102826 |
